0603DC Series

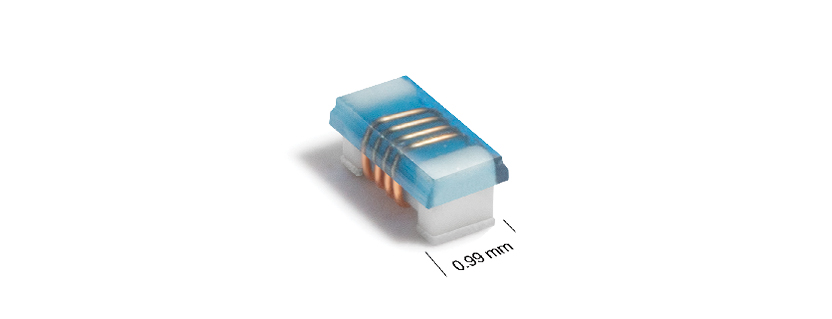

Coilcraft’s 0603DC Series achieves the industry’s highest Q factors in 0603 size for super low loss in high-frequency circuits. They also feature wirewound construction for extremely high self resonance – up to 11.4 GHz – and achieve DCR as low as 29 mΩ, significantly lower than other inductors this size.

  • Exceptionally high Q – up to 177 at 2.4 GHz!
  • Self-resonant frequencies as high as 11.4 GHz
  • 45 inductance values ranging from 2.7 to 470 nH
  • AEC-Q200 Grade 1 (−40°C to +125°C)

Courtesy of Coilcraft
