New 12-50 GHz x2 Multiplier Features

Low Loss and High Suppression

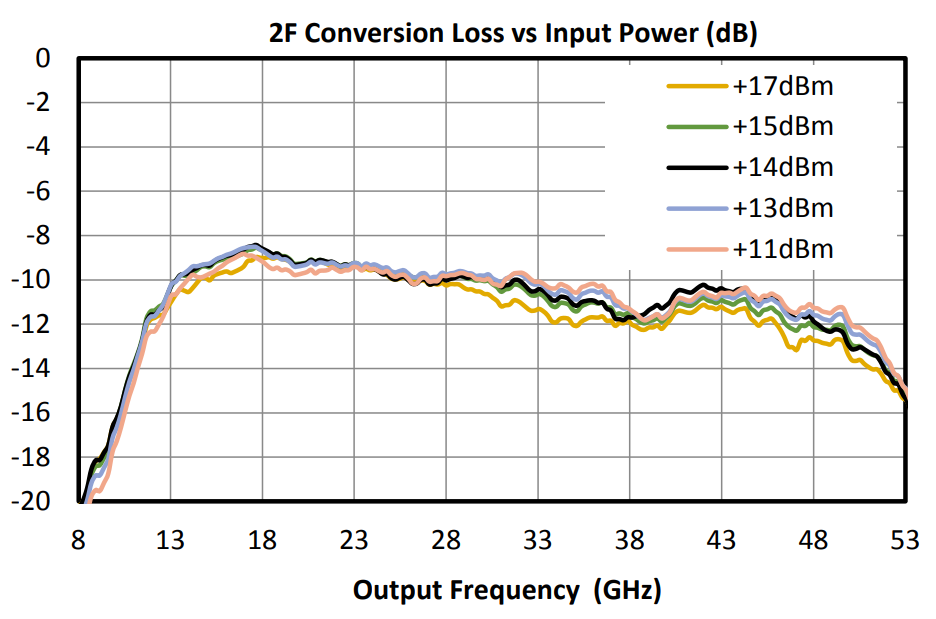

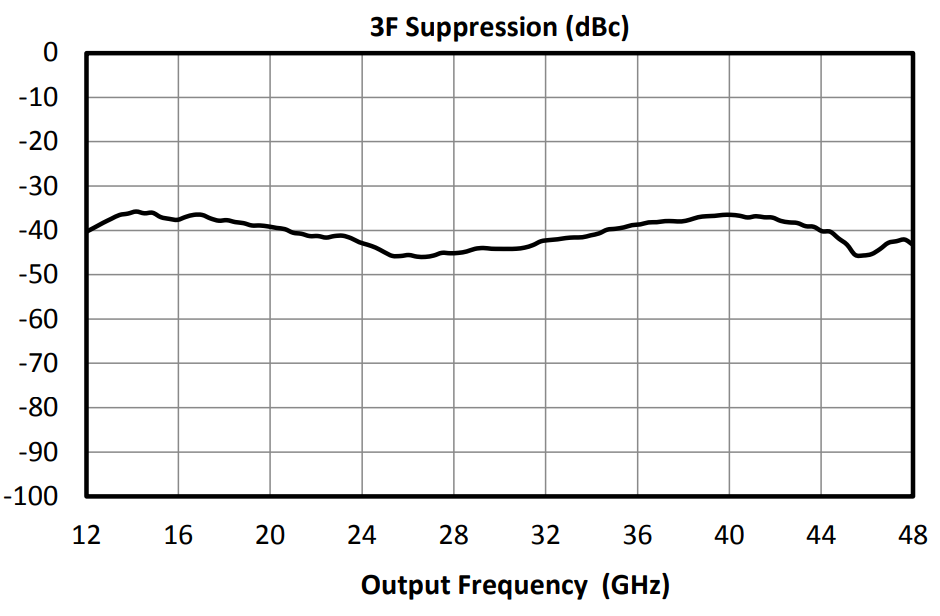

Minimizing losses is crucial at mmWave frequencies, which is why we designed the MMD-1250H passive frequency doubler with a low 10dB conversion loss over its wide 12 to 50GHz output range. Filtering is simplified, or even eliminated, thanks to the 32dBc 1F and 40dBc 3F suppression. MMD-1250H is available as wire-bondable die or in a connectorized package.

Visit our website or contact support@markimicrowave.com for recommended input and output amplifiers.

MMD-1250H: Datasheet | Input 6-25 GHz | Output 12-50 GHz | Conv Loss 10 dB | Supp F 32 dBc | Supp 3F 40 dBc

MMD-1250H:

New Broadband mmWave Amplifier Provides

High Output Power to 67GHz

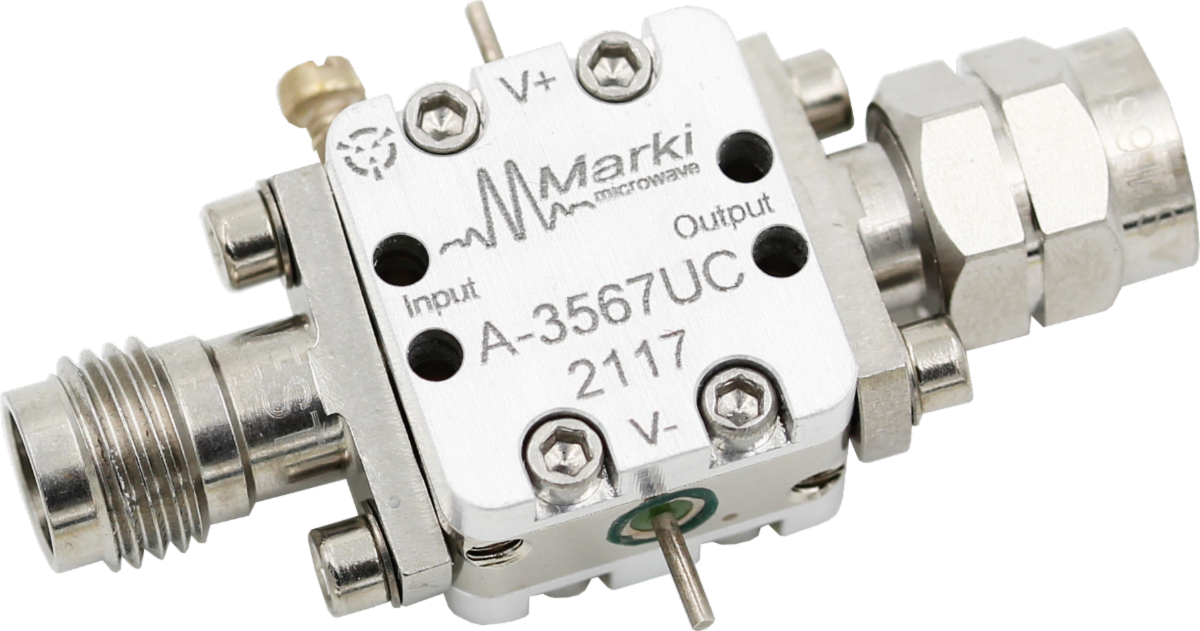

The A-3567 is our highest frequency amplifier yet, with 18dB of gain and +26dBm OIP3 over the entire 35 to 67 GHz bandwidth. Requiring only +5dBm drive for a +20dBm saturated output, this power-efficient amplifier is an ideal driver for mmwave Marki mixers, IQ mixers, and multipliers. The A-3567UC is offered in a coaxial connectorized module and available today.

A-3567: Datasheet | Freq Band 30-67 GHz | Input Pwr for Sat +8 to +13 dBm | Sat Output Pwr +20 dBm | Sm Sig Gain 18 dB

Courtesy of Marki Microwave
