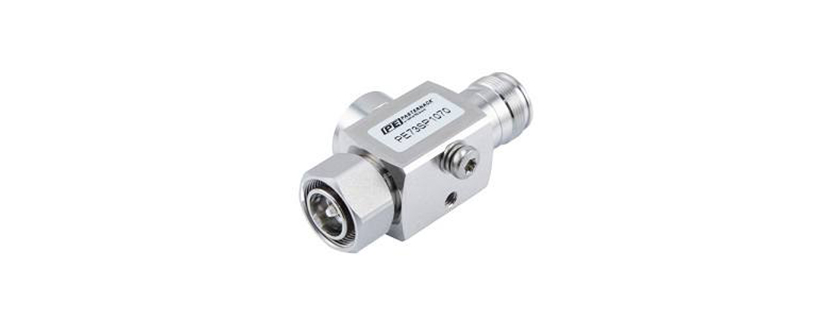

The PE73SP1070 from Pasternack Enterprises Inc is a RF Surge Protector with Frequency 555 MHz to 4 GHz, Input Power 200 W, Insertion Loss 0.1 dB, Operating Temperature -40 to 85 Degree C, Surge Current 50 kA. Tags: Quarter-Wave Shorting Stub (QWS). More details for PE73SP1070 can be seen below.

Product Details

  • Part Number: PE73SP1070
  • Manufacturer: Pasternack Enterprises Inc
  • Description: 555 MHz to 4 GHz, 4.3-10-Male to 4.3-10-Female Low PIM Quarter Wave Protector

General Parameters

  • Applications: CBRS Networks, Cellular, DAS, public safety system, Emergency response system
  • Body Material: Brass
  • Body Plating: Tri-Metal
  • DC Handling: DC Block
  • Dimensions: 2.77 x 0.98 x 1.47 Inch
  • Directionality: Directional
  • Impedance: 50 Ohms
  • Input Connector: 4.3-10
  • Input Connector Gender: Male
  • Multi-Strike: Yes
  • Output Connector: 4.3-10
  • Output Connector Gender: Female
  • PIM: 160 dBc
  • Type: Quarter-Wave Shorting Stub (QWS)
  • VSWR: 1.18:1
  • Weight: 4.35 kg, 9.6 lbs
  • Frequency: 555 MHz to 4 GHz
  • Input Power: 200 W
  • Insertion Loss: 0.1 dB
  • Operating Temperature: -40 to 85 Degree C
  • Surge Current: 50 kA
