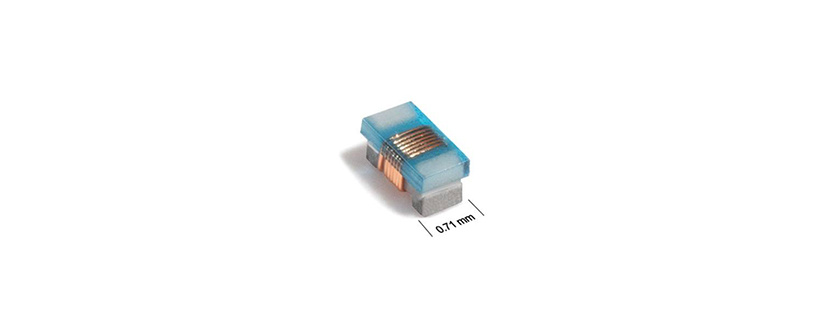

The 0402HP Series from Coilcraft are Ceramic Chip Inductors with inductance values from 1 to 220 nH. They have a Q-factor of up to 105 (at 1.7 GHz) and self-resonant frequencies of up to 16 GHz. These inductors have a current handling capability of up to 2.3 A and an operating temperature range of -40°C to +125°C. They are available in compact packages that measure 1.09 x 0.71 x 0.61 mm with RoHS matte Sn-over-Ni-over-Ag-Pt-glass frit termination (other terminations available at additional cost).

Product Details

  • Part Number: 0402HP Series
  • Manufacturer: Coilcraft
  • Description: Compact Ceramic Chip Inductors from 1 to 220 nH

General Parameters

  • Inductance: 1.0 to 220 nH
  • DC Resistance: 0.030 to 3.1 Ohms
  • DC Current: 160 to 2300 mA
  • Self Resonant Frequency: 960 MHz to 16 GHz
  • Mounting: Surface Mount
  • Thickness: 0.75 mm
  • RoHS: Yes
  • Type: Ceramic Inductor, Chip Inductor
  • Operating Temperature: -40°C to +125°C
  • Quality Factor: 46 to 105
  • Storage Temperature: -40°C to +140°C
  • Tolerance: 2 %, 3 %, 5 %
  • Weight: 0.7 – 1.0 mg
