When to Use S-parameters for High-frequency Circuit Simulations Understanding the meaning of S-parameters, how they are measured, and their limitations can lead to more meaningful simulations of RF- and microwave-frequency inductors, chokes, wideband RF transformers, and high-speed common mode chokes. This document describes how S-parameters are generated and how to best apply them to your...

026011F Series RF Inductor by Coilcraft The 026011F from Coilcraft are Miniature RF Chokes available in inductance values up to 560 nH. They have a ferrite construction which ensures high current handling and a low DCR. These RF chokes are available in surface-mount packages that measure 0.70 x 0.30 x 0.55 mm and feature high impedance for...

WB2010-1-SML Balun by Coilcraft The WB2010-1-SML from Coilcraft is a Balun with Frequency 0.04 to 175 MHz, Current 250 mA. Tags: Surface Mount, Unbalanced to Balanced. More details for WB2010-1-SML can be seen below. Product Details Part Number: WB2010-1-SML Manufacturer: Coilcraft Description: 0.04 to 175 MHz, Unbalanced to Balanced Balun General Parameters Configuration: Balun, Transformer Type: Unbalanced...

0201AF Series RF Inductor by Coilcraft The 0201AF Series from Coilcraft are Wire-Wound Ferrite Core Chip Inductors with inductance values of up to 200 nH. They are optimized for RF isolation in applications ranging from 900 MHz to 9 GHz. The inductors have a low-loss ferrite construction that ensures high impedance, high current handling capability, and low...

0603LS Series RF Inductor by Coilcraft The 0603LS Series from Coilcraft are Ferrite Chip Inductors with inductance values ranging from 47 nH to 22 µH.  They have a high Q-factor of up to 22 (at 2.5 GHz) and self-resonant frequency (SRF) values ranging from 19 to 1500 MHz. These inductors have DC resistances of less than 8.81...

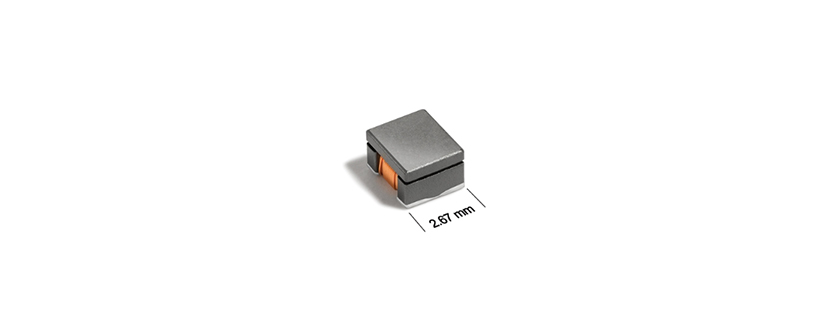

1210POCB-222MRC Choke by Coilcraft The 1210POCB-222MRC from Coilcraft is a Choke with Common Mode Peak Impedance 1 kOhms, DCR 0.080 to 0.100 Ohms, Impedance 1 kOhms, Inductance 2.2 uH, RMS Current 800 to 2000 mA. More details for 1210POCB-222MRC can be seen below. Product Details Part Number: 1210POCB-222MRC Manufacturer: Coilcraft Description: 300 MHz (SRF), Low Profile Power...

4310LC-352KE_ RF Inductor by Coilcraft The 4310LC-352KE_ from Coilcraft is a RF Inductor with Inductance 3.5 uH, DC Resistance 49 mOhms, DC Current 2.3 to 3.1 A, Self Resonant Frequency 188 MHz, Operating Temperature -40°C to +85°C. Tags: Conical Inductor. More details for 4310LC-352KE_ can be seen below. Product Details Part Number: 4310LC-352KE_ Manufacturer: Coilcraft Description: 188...

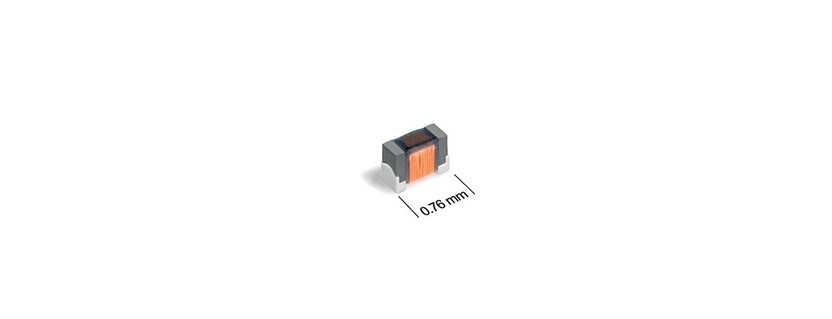

026011F-151XJR_ RF Inductor by Coilcraft The 026011F-151XJR_ from Coilcraft is a RF Inductor with Inductance 0.15 uH, DC Resistance 0.68 Ohms, DC Current 190 mA, Self Resonant Frequency 1.8 GHz, Operating Temperature -40 to 85 Degree C. Tags: Chip Inductor, Wire Wound Inductor. More details for 026011F-151XJR_ can be seen below. Product Details Part Number: 026011F-151XJR_ Manufacturer:...

B07T_L_ RF Inductor by Coilcraft The B07T_L_ from Coilcraft is a RF Inductor with Inductance 0.022 µH, DC Resistance 5.2 mOhms, DC Current 4 A, Self Resonant Frequency 2.1 GHz, Operating Temperature -40 to 125 Degree C. Tags: Wire Wound Inductor. More details for B07T_L_ can be seen below. Product Details Part Number: B07T_L_ Manufacturer: Coilcraft Description:...

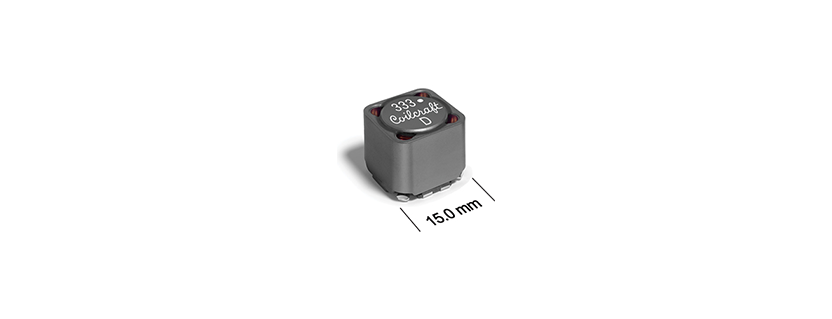

Coilcraft's New high-temperature coupled inductors are suitable for a wide range of applications Coilcraft's MSD1514T Series of 1:1 high-temperature coupled power inductors are used in Flyback, SEPIC, Ćuk, Zeta and other applications. The MSD_T family features magnetic shielding for compact packaging and tight winding-to-winding coupling. Excellent coupling coefficient (k ≥ 0.97) Ideal for use in...
