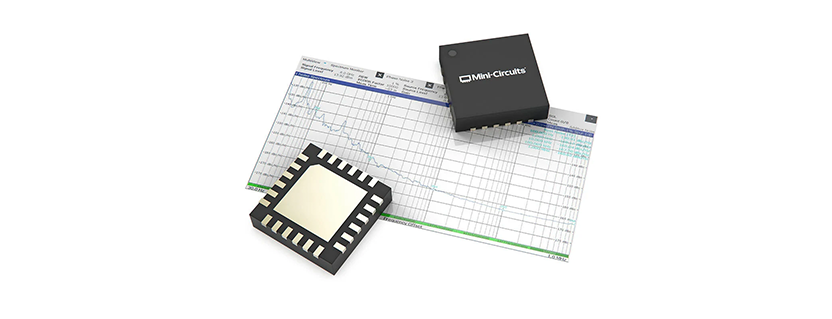

Mini-Circuits New Model Alert: Ultra-Low Phase Noise MMIC Amplifier, 6 to 18 GHz 6 GHz TO 18 GHz, Low Phase Noise Amplifier, Improve System SNR in Sensitive Transceiver Chains Mini-Circuits’ LVA-6183PN+ is a wideband, ultra-low phase noise MMIC amplifier perfect for use with low noise signal sources and in sensitive transceiver chains. This model operates...

VNAX-2FT-EMERF RF Cable by Mini Circuits The VNAX-2FT-EMERF+ from Mini-Circuits is a 67 GHz Rugged Instrumentation Cable. It is specially designed for use with VNA equipment in test environments and provides excellent VSWR and very low insertion loss over its entire frequency range. This cable has an insertion loss of less than 4.6 dB and a typical...

Mini-Circuits New Model Alert: Turnkey 1 kW Energy Source & HPA 2.4 GHz TO 2.5 GHz, 1 kW Signal Source, Turnkey Solution for ISM RF & Microwave Energy Mini-Circuits’ RFS-2G42G51K0+ is a versatile, new generation amplifier with an integrated signal source, usable in a wide range of industrial, scientific, and medical applications. This model has...

QCH-63 Power Divider by Mini Circuits The QCH-63 from Mini Circuits is a 2 Way-90° Power Splitter that operates from 2000 to 6000 MHz. It can handle up to 200 watts of power with an amplitude unbalance of ±1.0 dB and phase unbalance of ±1.5 deg. This compact SMT power divider can be used in a variety...

Mini-Circuits SMT Passives to 250W! DC TO 14.5 GHz, High-Power SMT Passives, Compact Stripline Couplers & Hybrids up to 250W Mini-Circuits’ surface-mount stripline couplers and 90° hybrids cover an operational frequency range of DC to 14.5 GHz. Coupler models feature greater than 2 decades of bandwidth and power handling up to 180W, while the hybrids...

ZVA-20543VG+ RF Amplifier by Mini Circuits The ZVA-20543VG+ from Mini-Circuits is a Variable Gain Amplifier that operates from 20 to 54 GHz. It delivers a saturated output power of 31 dBm with up to 50 dB of gain and a variable gain range of 17 dB. The gain can be controlled with an Analog or TTL Control....

Group Delay in RF Filters The concept of group delay as it pertains to RLC networks was first described by Harry Nyquist in 1928.1 The contributions Nyquist made to the field of Communications Theory are well known,2 and still applicable to modern day communications systems. On our way toward understanding group delay in this brief application note,...

Mini-Circuits New Model Alert: Wideband MMIC LNA with Bypass 0.4 GHz TO 8 GHz, MMIC LNA with Bypass, Versatile Performance with Extended Dynamic Range Mini-Circuits’ TSY-83LN+ wideband, MMIC LNA incorporates a bypass mode feature to extend system dynamic range. This model operates from 0.4 to 8 GHz and achieves an industry leading combination of wideband...

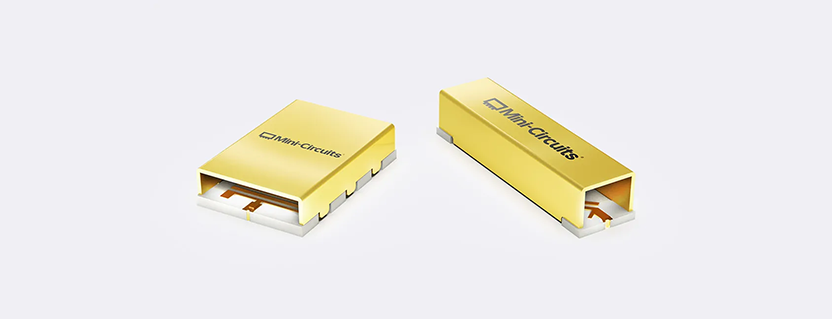

Expanded Thin-Film Filter Selection PASSBANDS TO 29.5 GHz | STOPBANDS TO 40 GHz, Thin Film Filter Technology, Wide-Passband Designs with High Q Mini-Circuits has expanded its line of thin-film filter topologies to address a wider variety of applications and requirements. Low pass and band pass architectures are available with high Q and insertion loss of...

TSY-83LN+ RF Amplifier by Mini Circuits The TSY-83LN+ from Mini-Circuits is a GaAs pHEMT Low Noise Amplifier MMIC that operates from 0.4 to 8 GHz. It provides a gain of up to 23 dB with a noise figure of less than 2.5 dB and has a P1dB output power of up to +22.9 dBm. This LNA MMIC...
