4801-8-127 RF Variable Attenuator by Spectrum Control The 4801-8-127 from Spectrum Control is an 8-Channel Programmable Attenuator that operates from 0.3 to 8000 MHz. It provides an attenuation range from 0 to 127 dB in 0.25 dB steps and an attenuation switching time of 0.2 µs. This attenuator allows all eight channels to be independently programmed to...
Read More
4209-18-63 RF Variable Attenuator by Weinschel by Spectrum Control The 4209-18-63 from Weinschel by Spectrum Control is a Programmable Attenuator that operates from 0.1 to 18 GHz. It provides an attenuation of up to 63 dB with step size of 0.5 dB and a switching speed of 40 ns. This solid-state attenuator can handle an input power...
Read More

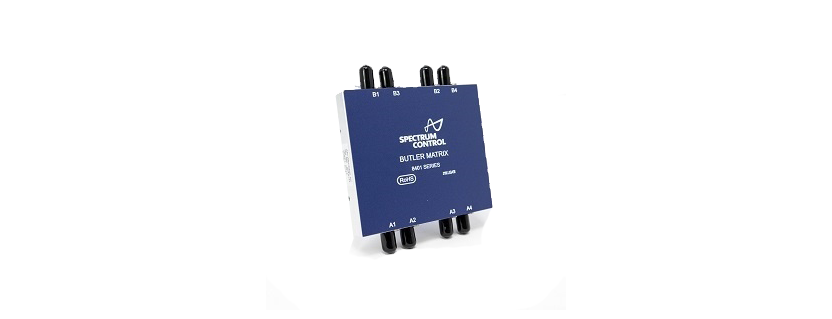

8401-6 Butler Matrix by Weinschel by Spectrum Control The 8401-6 from Weinschel by Spectrum Control is a 4x4 Butler Matrix that operates from 0.5 to 6 GHz. It can handle an input power of 5 W (~37 dBm), has an insertion loss of less than 12 dB, and provides 25 dB of isolation. This butler matrix has...
Read More
QTRM Beamforming IC by Spectrum Control The QTRM from Spectrum Control is a 4-channel Beamforming TR Module that operates from 9 to 10 GHz. It is a versatile, feature-rich module with channel-independent active gain and phase control intended for AESA applications in the X-band frequency range. In the Tx mode, this beamformer module provides a small signal...
Read More
SCRS-00-1000 Front End Module by Spectrum Control The SCRS-00-1000 from Spectrum Control is a RF Front-End (RFFE) System-in-Package that operates from 6 to 18 GHz (filtered) and 2 to 20 GHz (unfiltered). It delivers the capabilities of an Integrated Microwave Assembly (IMA) in a compact, high-volume package. This RFFE’s surface-mount design along with built-in digital control offers...
Read More
Spectrum Control Introduces mmWave Block Converter with Integrated Digital Control in a Surface Mount Package Spectrum Control, an innovative leader in RF miniaturization and digital integration, introduces a new standard product to its RF+ System in Package (SiP) platform. The SCRS-00-1001 RF+ SiP down converts wideband millimeter wave (mmWave) signals between 18 GHz - 40 GHz into standard 2...
Read More
KACH375-375AZ-1000J Termination by Inmet by Spectrum Control The KACH375-375AZ-1000J from Spectrum Control is a Power-Film Chip Termination that operates from DC to 3 GHz. This termination can handle an average input power of 150 W and has a VSWR of less than 1.10:1. It has an AlN substrate and a thick film resistive element. Direct mounting of...
Read More
EQ2301 Gain Equalizer by Inmet by Spectrum Control The EQ2301 from Inmet by Spectrum Control is a Negative Slope Gain Equalizer that operates from 0.5 to 18 GHz. It provides gain equalization slopes ranging from 3 to 35 dB and has a maximum insertion loss of 6 dB. This equalizer can handle an input power of up...
Read More
PCA3060 Fixed Attenuator by Inmet by Spectrum Control The PCA3060 Series from Inmet by Spectrum Control are Surface-Mount Fixed Attenuators that operate from DC to 30 GHz. They have an attenuation range from 0 to 10 (1 dB Steps), 12, 15 & 20 dB. These attenuators can handle up to 1 W of average power and have...
Read More
EQ2402 Gain Equalizer by Inmet by Spectrum Control The EQ2402 from Inmet by Spectrum Control is a Positive Slope Gain Equalizer that operates from 2 to 18 GHz. It provides delta slopes from 3 to 45 dB and has an insertion loss of less than 4 dB. This equalizer can handle an input power of up to...
