1439 Termination by Weinschel by Spectrum Control The 1439 Series from Weinschel by Spectrum Control are Conduction/Convection-Cooled RF Terminations that operate from DC to 2.5 GHz. They can handle an average input power of 150 W, a peak input power of up to 10 kW (5 µs pulse width, 0.75% duty cycle), and have a VSWR of...
Read More
12NPC50-100EG Termination by Inmet by Spectrum Control The 12NPC50-100EG from Inmet by Spectrum Control is a Chip Termination that operates from DC to 12 GHz. It can handle an average input power of 20 W and has a VSWR of less than 1.15:1. This 50-ohm (optional 100-ohm) termination chip measures 2.54 x 1.27 x 0.38 mm. It...
Read More
8037 DC Block by Inmet by Spectrum Control The 8037 is an SMA Male to Female Inner DC Block that operates from 10 MHz to 18 GHz. It has an insertion loss of less than 0.5 dB and a VSWR of 1.25:1 through the band. The DC Block is matched to 50 ohms and has a 200...
Read More
4400-8-95 RF Variable Attenuator by Spectrum Control The 4400-8-95 from Spectrum Control is a 4-Channel Programmable Attenuator that operates from 0.1 to 8 GHz. It provides an attenuation range from 0 to 95 dB in 0.5 dB steps and has an attenuation switching time of 100 ns. The attenuation channels can be operated independently or in a...
Read More

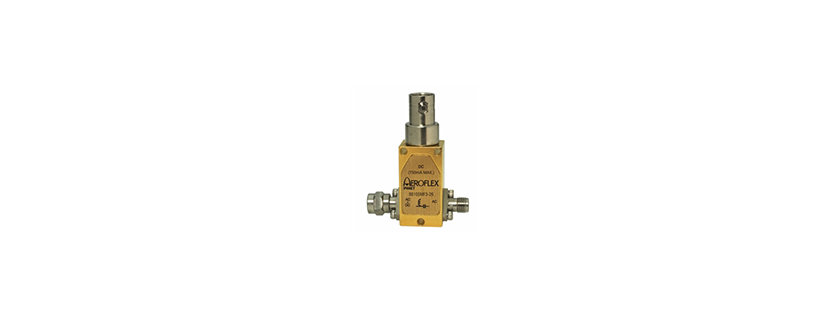

8810KMF2-40 Bias Tee by Inmet by Spectrum Control The 8810KMF2-40 from Inmet is a Bias Tee that operates from 50 kHz to 40 GHz. It can handle a DC voltage of 25 V and a DC current of up to 150 mA. This bias tee provides 50 dB of isolation (RF to bias port), has an insertion...
Read More

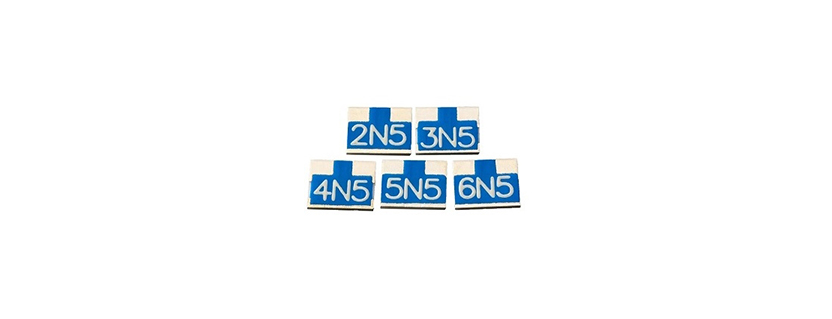

TCAF-N05 RF Variable Attenuator by Spectrum Control The TCAF N05 Series are temperature-variable chip attenuators that operate from DC to 12 GHz. The attenuators are designed to vary by -0.005 dB/dB/Degree C to compensate for temperature-induced system gain variation without requiring a bias or control voltage. They offer the flattest broadband performance of their kind and will...
Read More

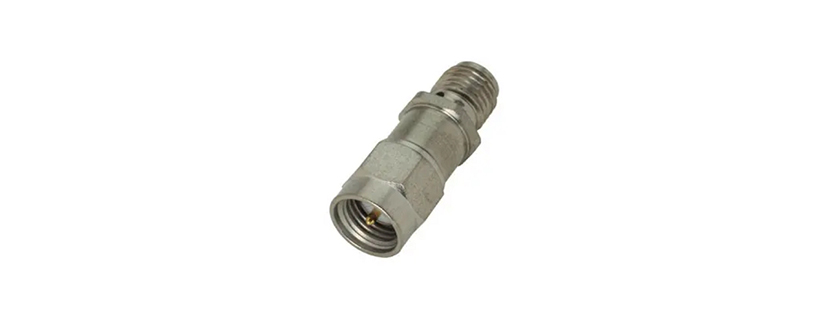

8535 DC Block by Inmet by Spectrum Control The 8535 from Spectrum Control is an Inner DC Block that operates from 7 kHz to 23 GHz. It has a DC voltage rating of up to 100 V, a VSWR of less than 1.35:1, and an insertion loss of less than 0.75 dB. This 50-ohm DC block has...
Read More
8039 DC Block by Inmet by Spectrum Control The 8039 from Spectrum Control is a DC Block that operates from 10 MHz to 18 GHz. It has a DC voltage rating of up to 200 V, a VSWR of less than 1.35:1, and an insertion loss of less than 0.5 dB. This 50-ohm DC block has a...
Read More

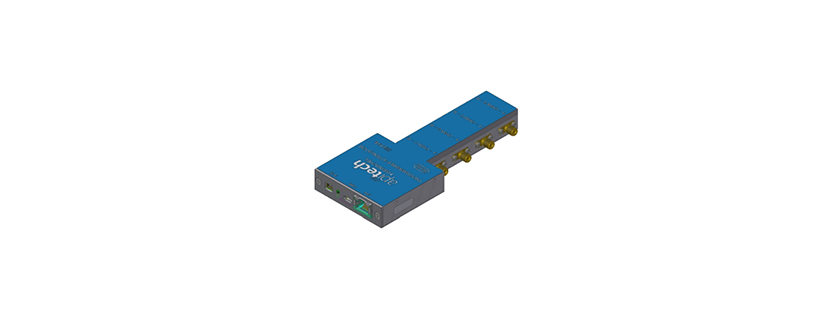

4401-8-31.5 RF Variable Attenuator by Spectrum Control The 4401-8-31.5 from Spectrum Control is a 4-Channel Programmable Attenuator that operates from 0.3 to 8000 MHz. It has an attenuation range from 0 to 31.5 dB with a step size of 0.5 dB and a switching speed of 0.2 µs. This bi-directional attenuator ensures uninterrupted RF when changing attenuation...
Read More
2142-CRYO Fixed Attenuator by Spectrum Control The 2142-CRYO from Spectrum Control are Bulkhead Cryogenic Attenuators that operate from DC to 18 GHz. They are available in attenuation values of 3, 6, 10, and 20 dB with an accuracy of ±0.5 dB. The attenuators use APITech’s in-house resistor fabrication process and have been tested to temperatures of 4...
Read More
